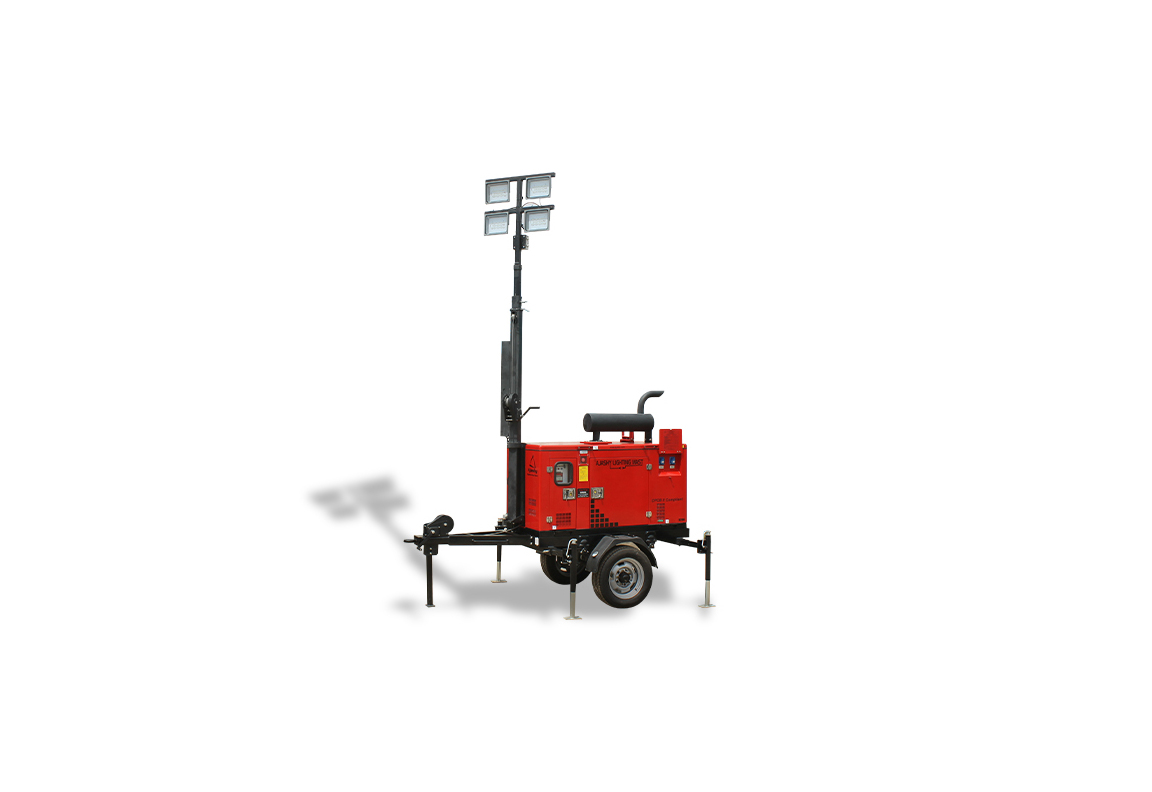

Lighting Mast is a movable lighting source that is powered by a diesel engine. The lights are mounted on a mast that can be folded and stowed. The output light is derived using LED lights which are cost-effective, energy-efficient, have a longer lifetime, and are environment friendly. These can be used at construction sites, infrastructure projects, airports, play-fields, schools, public functions, and at any other site where illumination is required.
OPTIONALS |
SALIENT FEATURES |
|
Auto Winder Reel.
|
Efficient and high performance 4x120 Watt/ 200 Watt/ 250 Watt/ 350 Watt/ 400 Watt IP66 LED lights with longer service life .
|
Product : Arabian Equipment Lighting Mast
Lighting System : x120 W/ 200 W/ 250 W/ 350 W/ 400 W LED Flood Lights with IP 66 Enclosure
Operational Dimensions : 3120 mm X 1900 mm X 6500 mm / 9000 mm
Transportation Dimensions : 2900 mm X 1500 mm X 2180 mm
Canopy Type : Silent CPCB - II Compliant
Noise Levels : 73dB(A) at 1 m distance
Lifting Hook : Available
No of Outriggers : 4 (Collapsible)
Suspension : Leaf Spring Axle, 1.5 Ton
No. of Tyres : 2 (205/65/R15)
Make : TMTL
Model : 198ES (CPCB - II)
Power : 11.5 HP
Rated RPM : 1500
Engine Type : Air Cooled
No. of Cylinders : Single
Battery Voltage : 12 VDC/ 35 AH
Oil Sump Capacity : 5 L
Oil Change Period : 500 Hours
Recommended Oil : CI 15 W 40 (Rakshak Genset Oil)
Fuel Tank Capacity : 50 L
Make : Leroy Somer/ Crompton Greaves/ Stamford
Output Power : 7.5 KVA Brushless
Frequency : 50 Hz
Rating Voltage (V) : 240 V
Insulation : Class H
Coupling : Conical Shaft close coupled SAE J60B
Type : Iron multiple section with interlock
Extended Height : 6.5 m
Stowed Height : 2.25 m
Extension : Manual through winch
Rotation : 350 degree
Wind Speed Stability : 110 km/ h
