Slope Compactor Roller

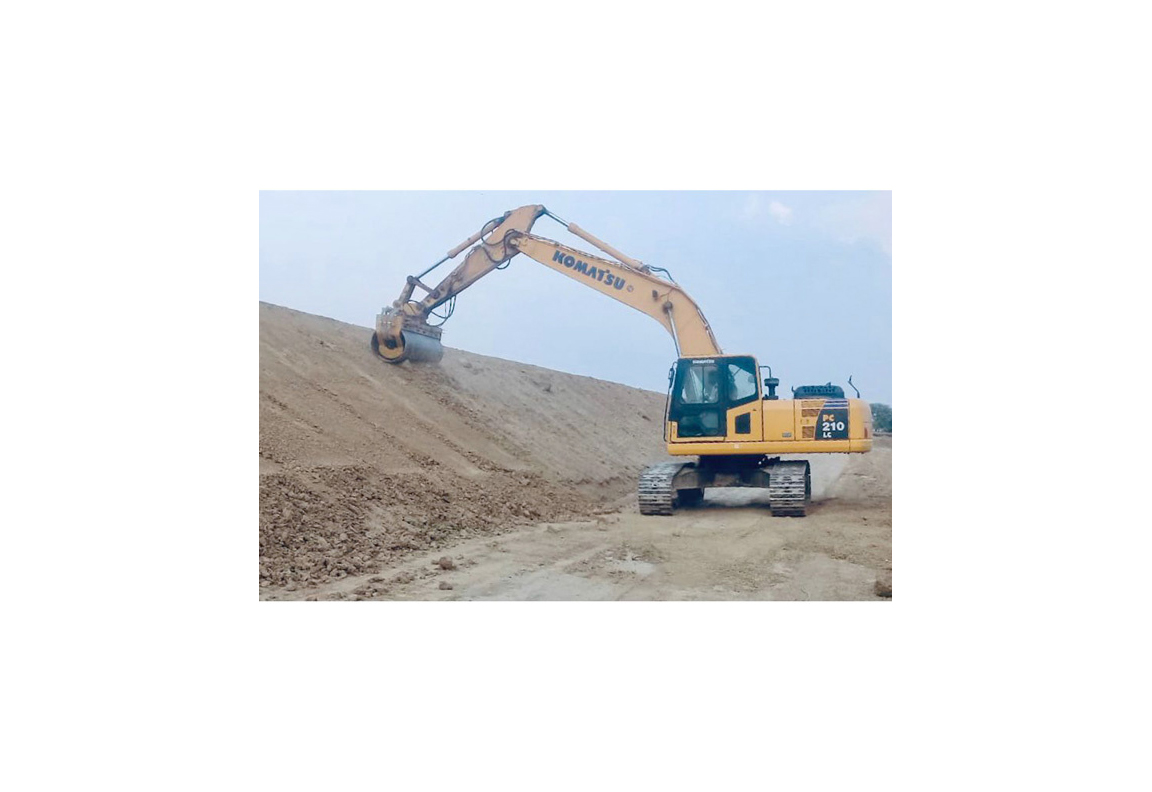

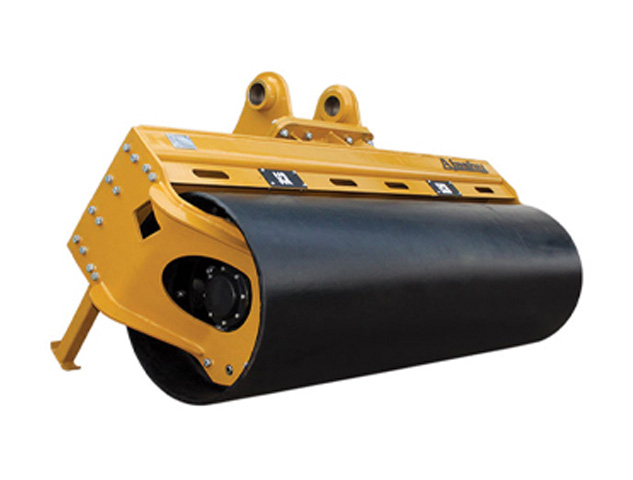

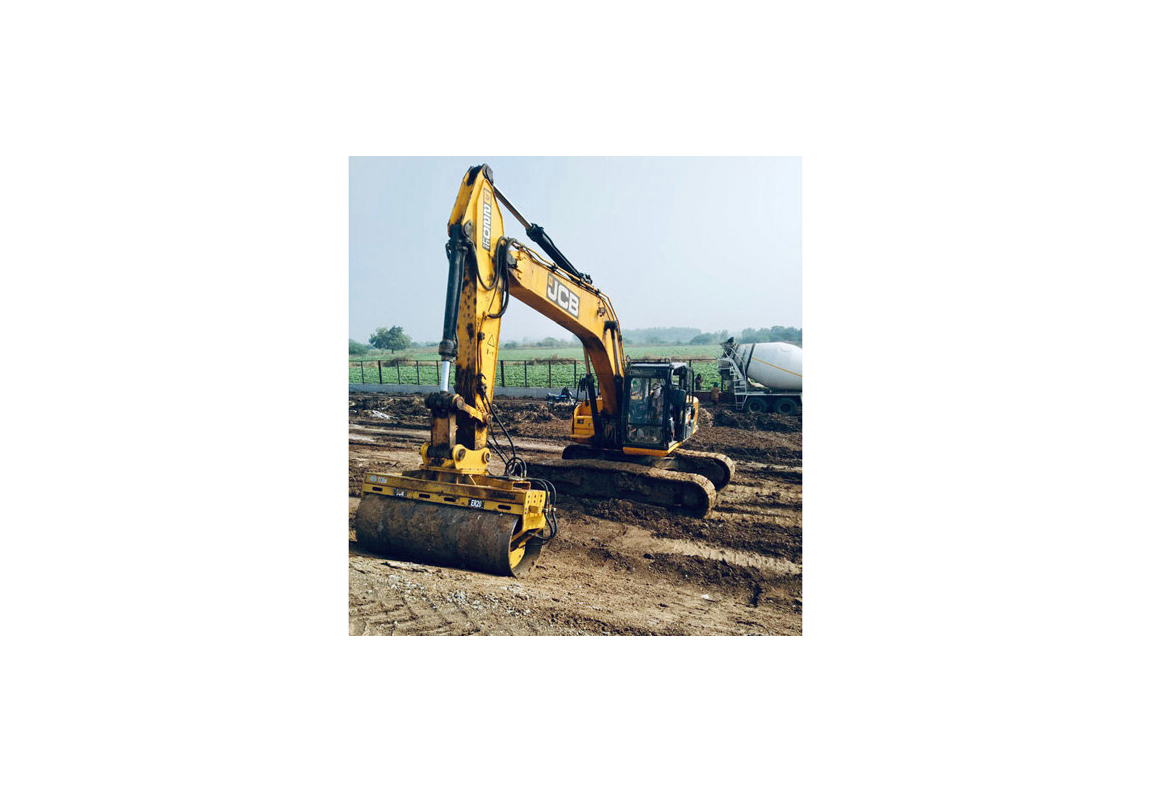

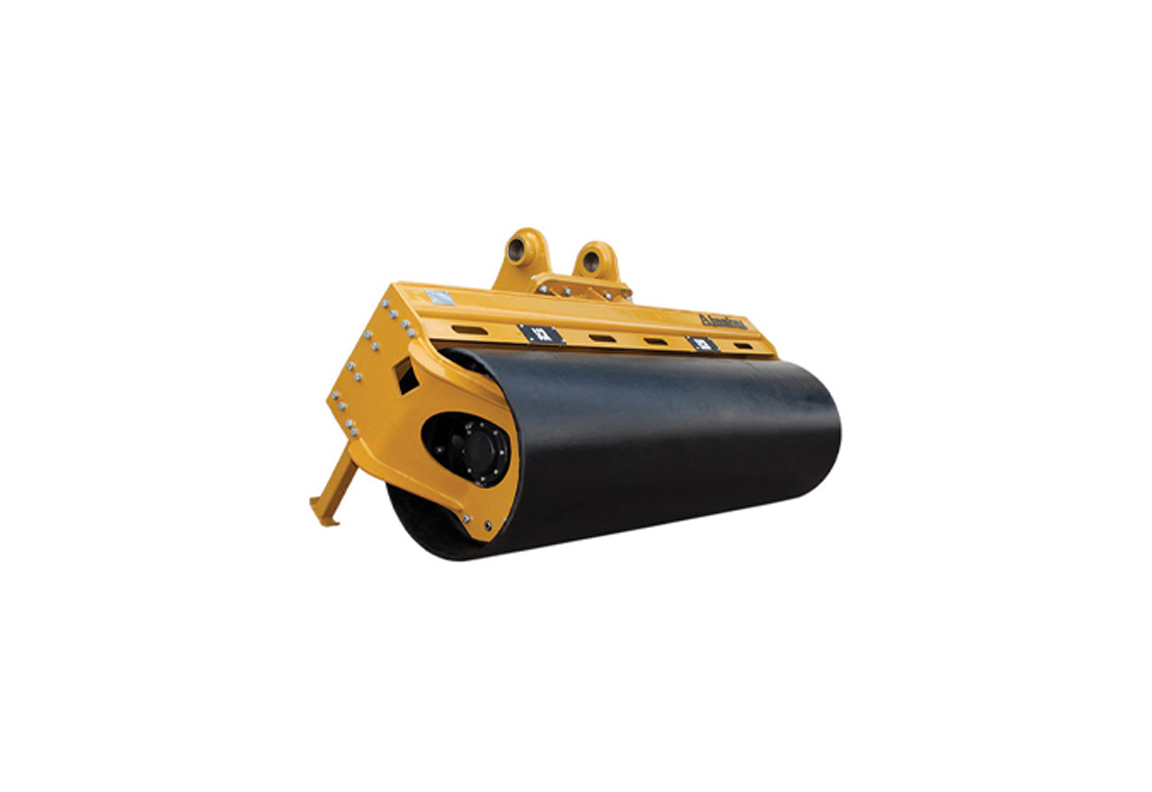

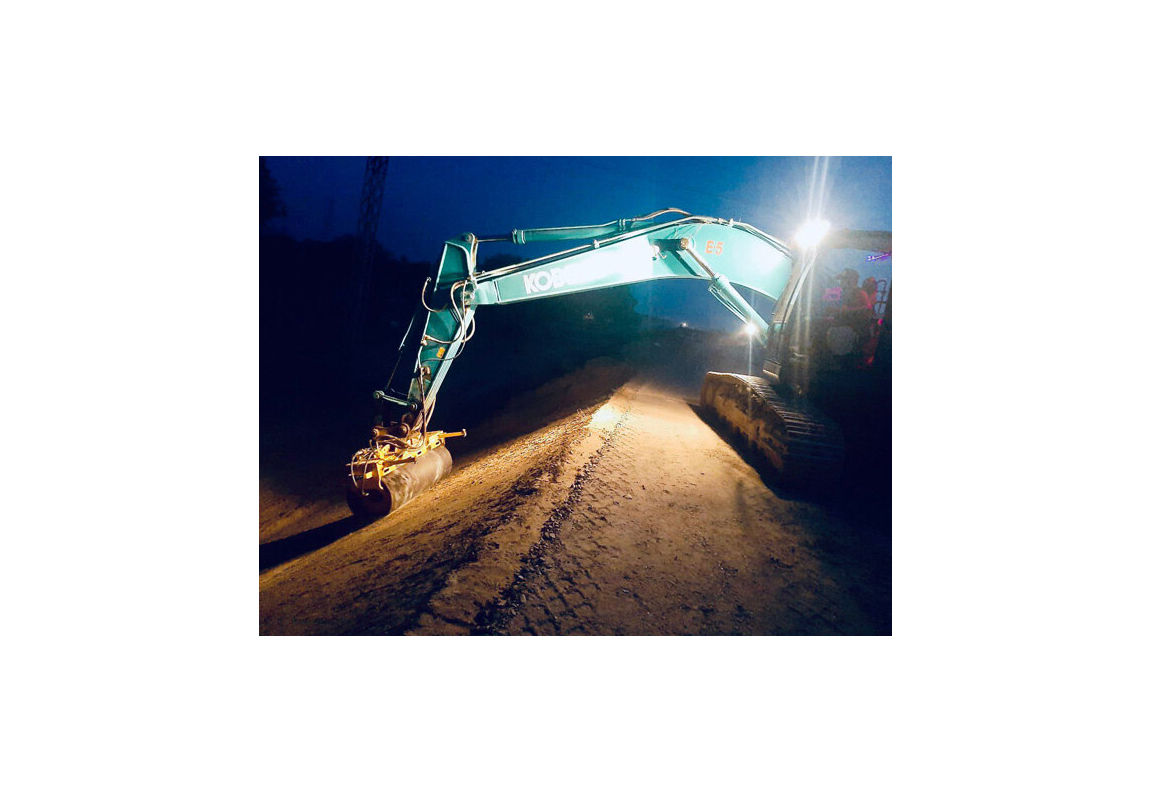

Slope Compactor Roller is designed to be attached onto Excavators/ Backhoe loader. It consists of a vibratory roller which is vibrated through an eccentric shaft while being operated through the hydraulic circuit of the carrier equipment. This is useful at sites where deep soil compaction is required and compaction of slopes such as canals, road-side hills etc and also for the areas which are non-accessible with the conventional compactors. The attachments are available for various carrier models and capacities.

OPTIONALS

Drum types to choose from: plain, pad foot.
Bracket for using same attachment for similar capacity equipment of different manufacturers.
Water sprinkler.
Piping and Stop valve kit.


SALIENT FEATURES

Simple plug and play operation.
Multiple roller types for different job requirements.
Effective compaction of slopes and tricky terrains, with high productivity at lower costs.
Useful for compaction of areas inaccessible with conventional compaction methods.
Can work in wet and slippery areas where conventional compactors are not usable.
Self cleaning drum.
Maintenance free design and easy access for replacing vibration dampening pads.

SPECIFICATION

# ER 10 ER 20 ER 30
LENGTH (mm) 1470 2500 2500
WIDTH (mm) 660 720 720
HEIGHT (mm) 1220 1400 1650
DRUM LENGTH (mm) 1105 2100 2100
DRUM DIA (mm) 660 760 760
WEIGHT (Kg) 710 1900 2385
CENTRIFUGAL FORCE (kN) 26 34 50
WORKING FLOW (L/Min) 80-100 180-220 250-270
WORKING PRESSURE (MPa) 14-15 16-21 18-21
