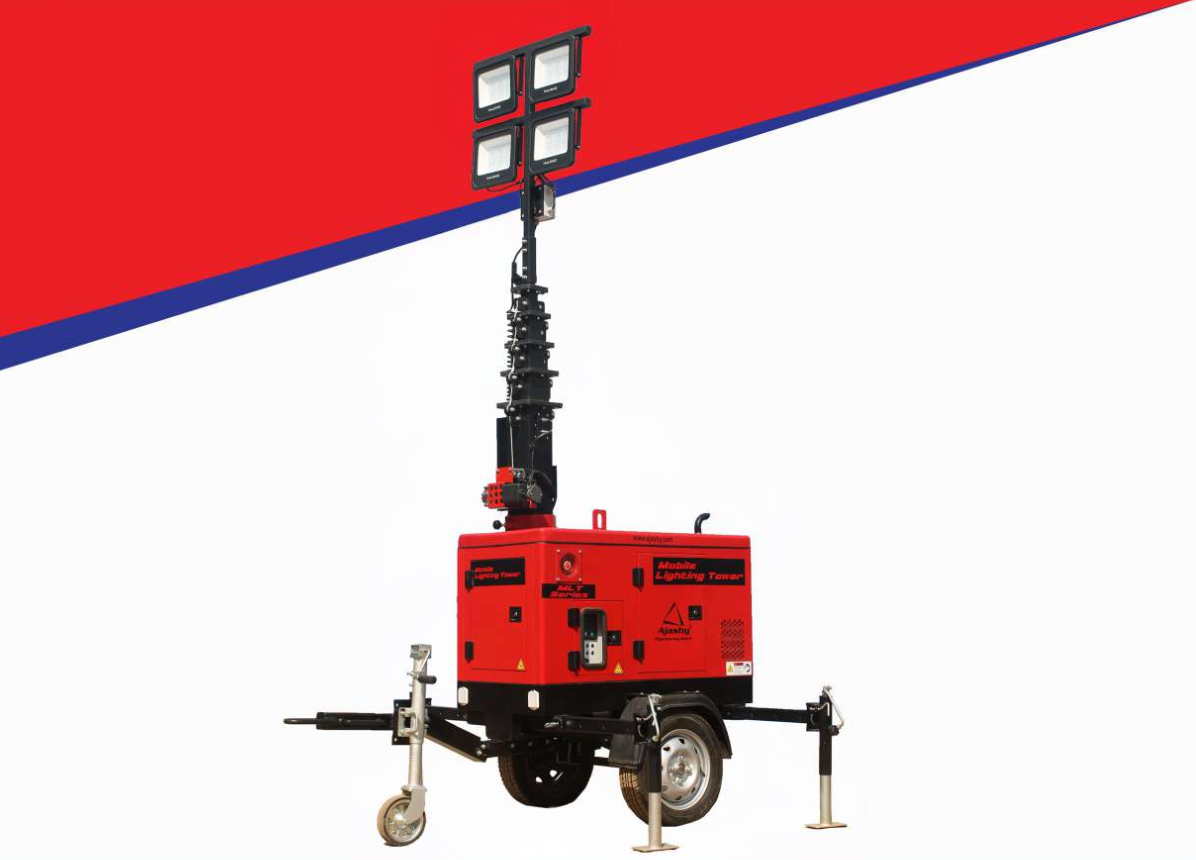

Mobile Lighting Tower is a movable lighting source powered by a diesel engine. The lights are mounted on a mast. The output light is derived using LED lights which are cost effective, energy efficient, have longer lifetime and are environment friendly. These can be used at construction sites, infrastructure projects, airports, playfields, schools, public functions and any other site where illumination is required.
OPTIONALS |
SALIENT FEATURES |
|
GPS enabled IOT remote management system.
|
Efficient and high performance 4x120 Watt/ 200 Watt/ 250 Watt/ 350 Watt/ 400 Watt IP66 LED lights with longer service life.
|
Product : Ajashy Mobile Lighting Tower
Lighting System : 4x120 W/ 200 W/ 250 W/ 350 W/ 400 W LED Flood Lights with IP 66 Enclosure
Operational Dimensions : 2250mm X 2300mm X 7000mm
Transportation Dimensions : 1600mm X 1150mm X 1500mm
Canopy Type : MS Silent Type
Lifting Hook : Available
No of Outriggers : (Collapsible) + 1(Jockey Wheel)
Suspension : Leaf Spring Axle
No. of Tyres : 2 (155/65/R15)
Make : REHLKO
Model : KD441-GS12
Power : 8.18 HP
Rated RPM : 1500
Engine Type : Air Cooled
No. of Cylinders : Single
Battery Voltage : 12 VDC
Oil Sump Capacity : 1.5 L
Oil Change Period : 500 Hours
Recommended Oil : CI 15 W 40
Fuel Tank Capacity : 35 L
Make : NSM/Italy
Model : K1000
Output Power : 3.5 KVA
Frequency : 50 Hz/60 Hz
Rating Voltage (V) : 230 V
Insulation : Class H
Coupling : J690B
Phase : Single
Type : Steel multiple section with interlock
Extended Height : 7 m
Stowed Height : 2.25 m
Extension : Electric winch
Rotation : 355 degree
Wind Speed Stability : 110 km/ h
Individual light control switches
Display for Frequency, Battery Voltage, RPM, Oil Pressure, Fuel Level, Running Hours, Alternator Voltage
Low oil pressure indicator / Engine trip on low oil pressure
High engine temperature indicator / Engine trip on high engine temperature
Emergency stop button
Transportation reflectors
