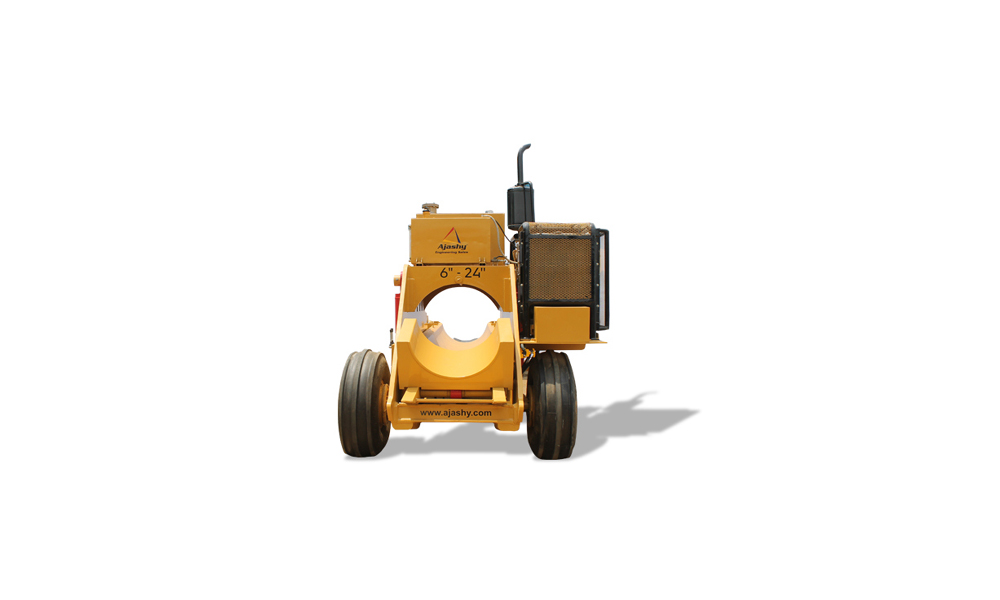

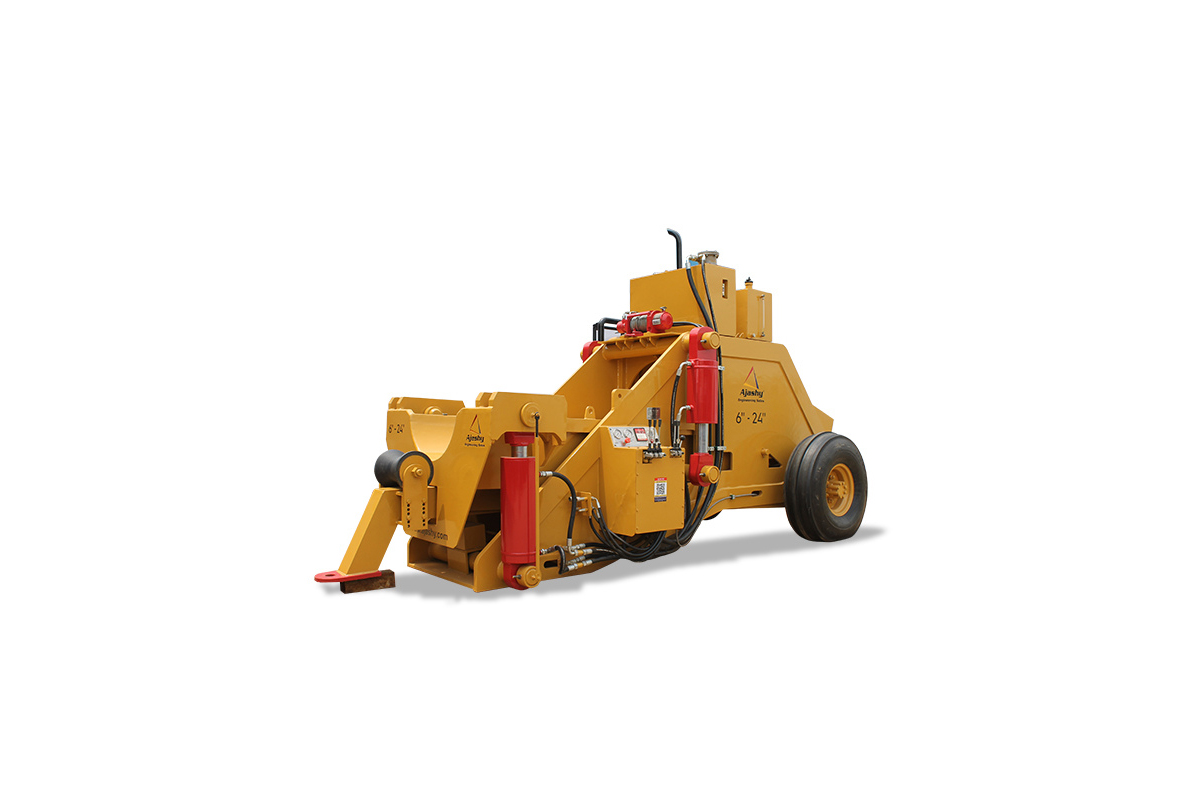

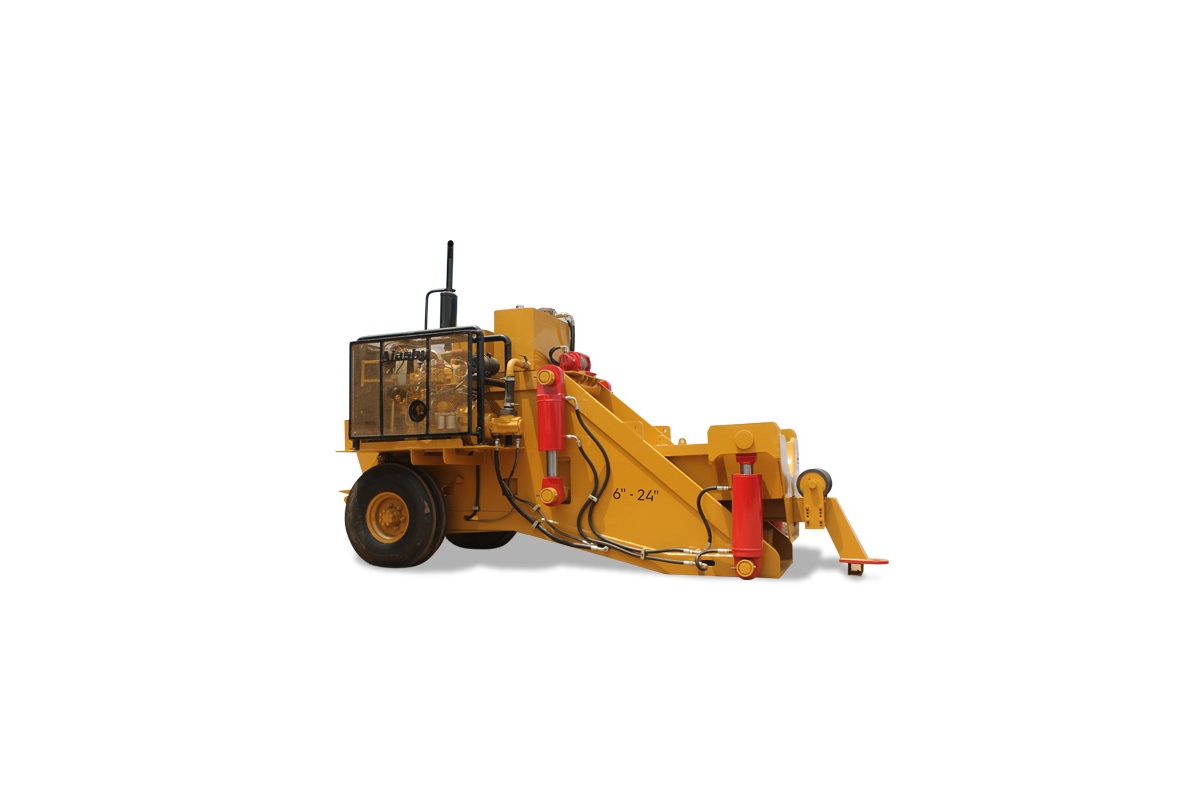

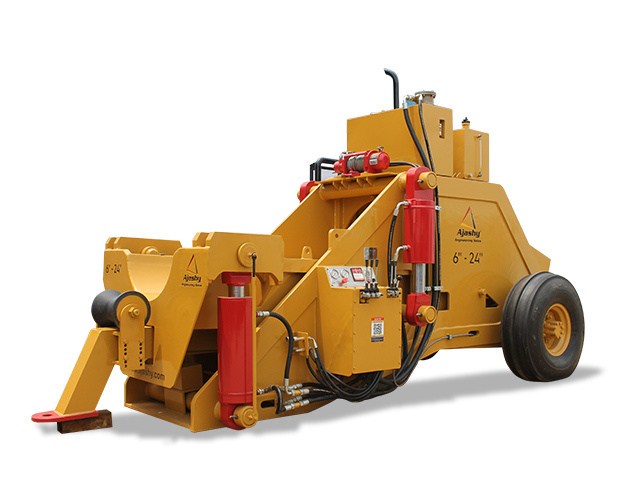

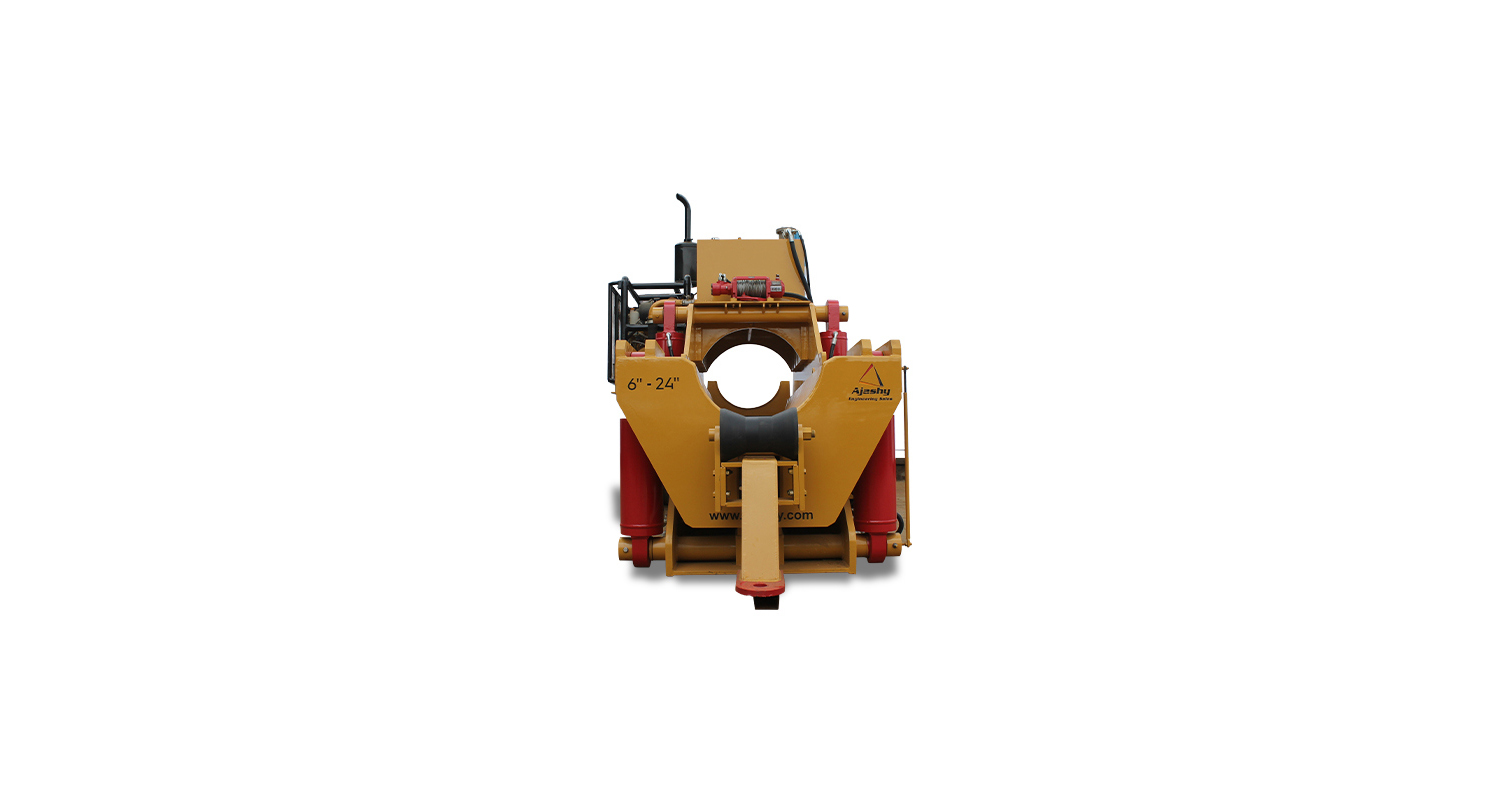

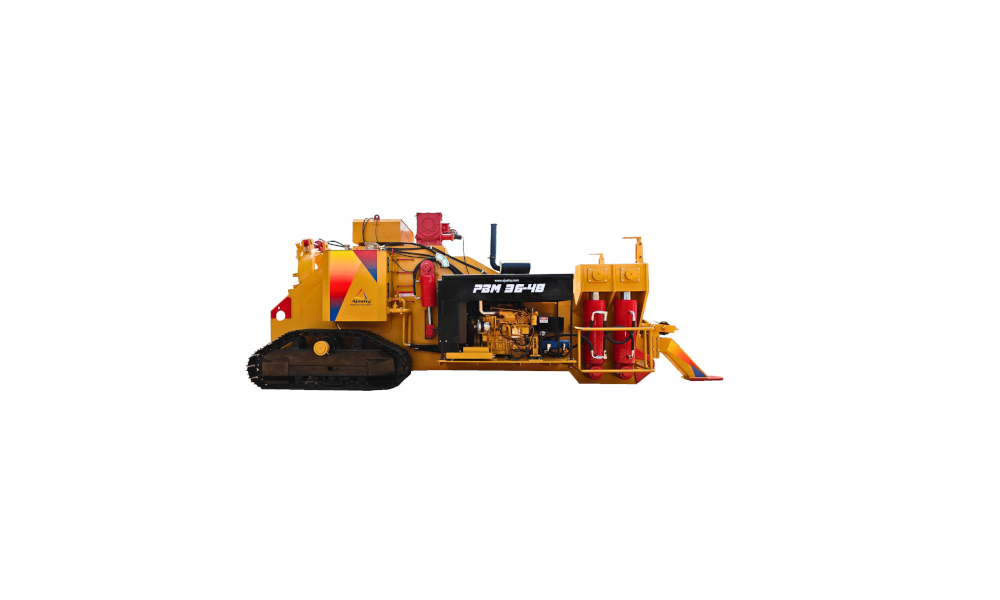

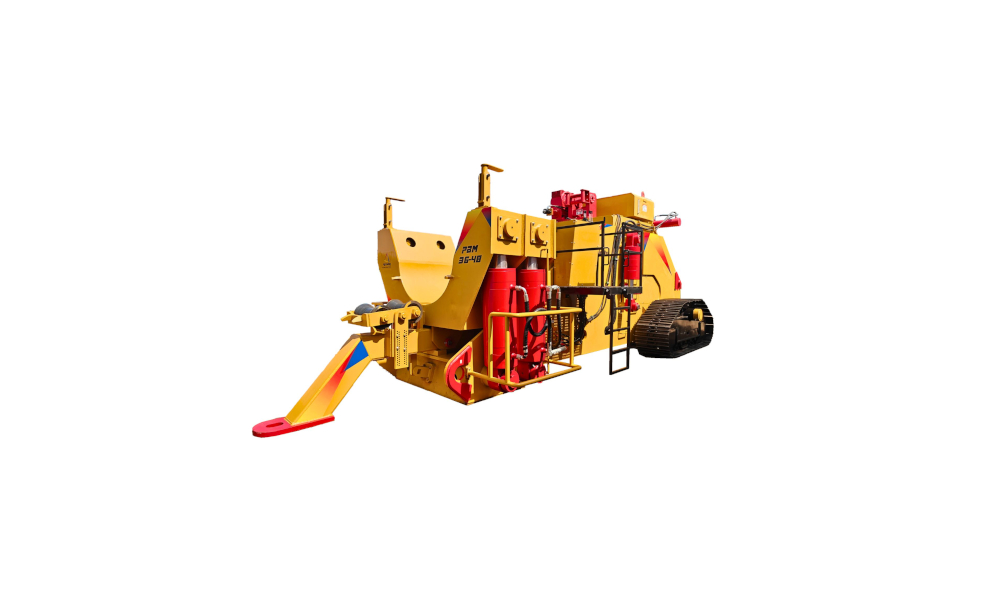

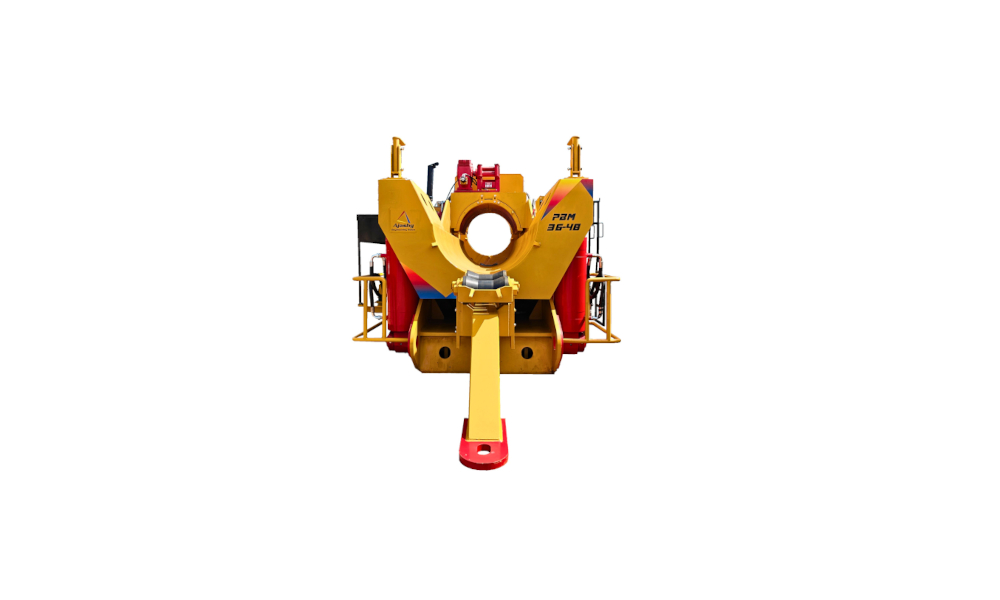

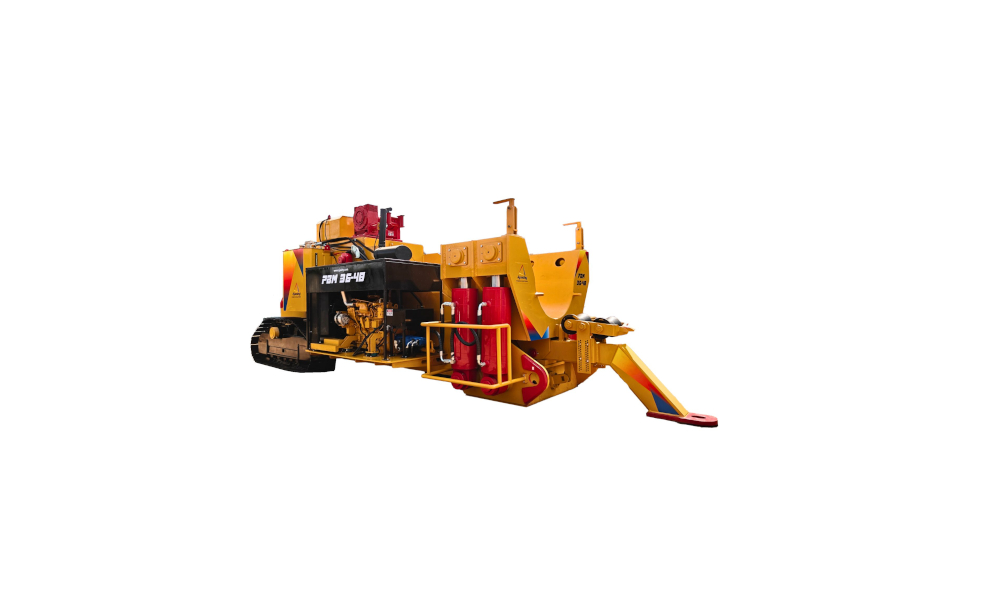

Arabian Equipment Pipe Bending Machine is designed to bend a wide range of routine pipes and pipes with high wall thickness and high yield strength efficiently and at higher bending pace.
Fitted with 68 HP higher capacity engine and 110+43LPM superior hydraulic system backed with robust high tensile steel main frame structure design Ajashy PBM produces enormous bending force which makes the complete bending system packed with remarkable bending capabilities resulting in effortless bending from 6 inches to 24 inches.
Ergonomically designed “No Step” operator station decreases operator fatigue drastically, making it easy for the operator to inspect the bending process and finish off jobs faster with high concentration.
OPTIONALS |
SALIENT FEATURES |
|

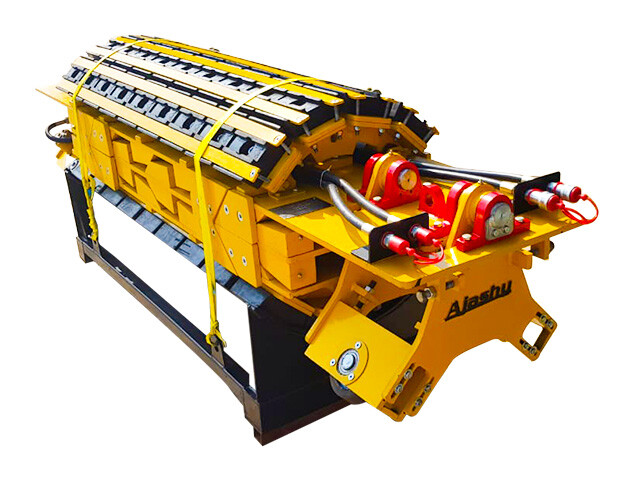

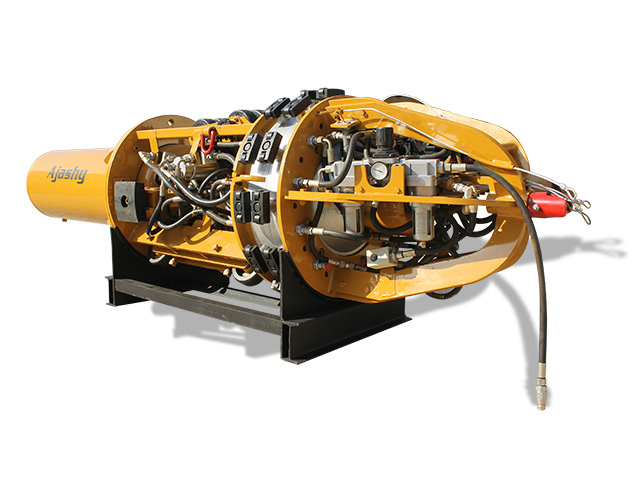

Hydraulic Mandrels suitable for various pipe sizes. |
Wider range of bending from 6 inches to 24 inches. |
DiameterPipe : 6" - 24"
Pipe Thickness : Bending Chart to be followed
Control Valve : Wolvoil ( Italy) , 4 Section
Pump Type ; Tandem Vane Pump
Maximum Pressure : 220 Bar
Operating Flow : 65 LPM
Hydraulic Tank Capacity : 165 L
Recommened Oil : ISO 46
Mandrel Connections Size : 1/2" BSP
Pulling Force : 6 Ton
Wire Rope : IWRC, Normal Lay, Ø 16 mm, 25 m
Voltage : 12 V
Battery : 100 Ah
Alternator : 12V
Starter : 12V
Nos. of Tyres : 02
Size : 11.00- 16/ 12 PR
Operating Dimensions : 5030 x 2160 x 2900 mm
Shipping Dimensions : 4850 x 2160 x 2400 mm
Weight : 7455 kg
