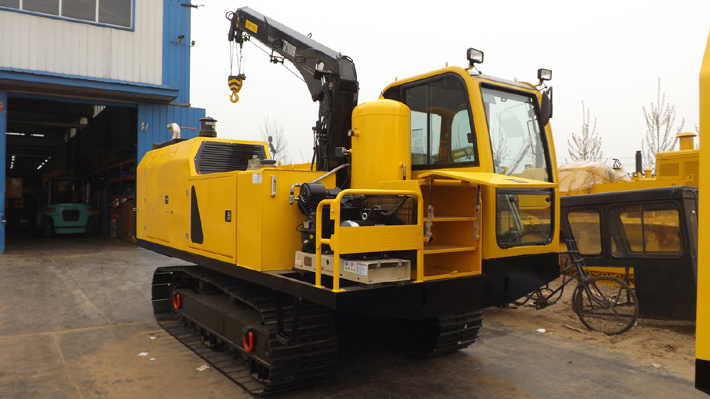

HY100

Engine model : Cummins 6BTA5.9-C170
Rated capacity : 100kVA
Max lifting capacity : 3200kg


ITEMS PARAMETERS
ModelPMHY100
Overall dimensions (L × W × H)5150 × 2370 × 2955mm
Operating weight9625kg
Ambient temperature-20℃ ～ +40℃
Length of track on ground2755mm
Track gauge1770mm
Ground pressure28.5kPa
Maximum grade ability25°
Ground clearance570mm
Travel speedLow: 0 ～ 2.5km/h, High: 0 ～ 4.0km/h
Welder positions2 ~ 4
Engine
ModelCummins 6BTA5.9-C170
Rated power / speed127kW / 2000rpm
Generator
MakeStanford
Rated capacity100kVA
Rated voltageAC 380/220V
Rated frequency50Hz
Hydraulic System
MakeRexroth / Danfoss
Max pressure31MPa
Max flow200L/min
Electrical Cabinet
Power output380V × 2, 10kW total; 220V × 2, 2.2kW total
Emergency BreakerYes
Crane
ModelHIAB ST083-032
Max lifting capacity3200kg
Max reach distance7.8m
Max lifting height10m
Boom luffing angle1 ～ 65° / 1 ～ 80°
Boom rotation360°

UNDERCARRIAGE

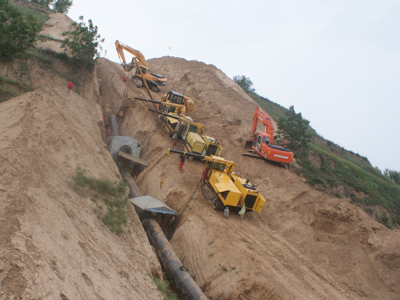

  • Hydrostatic driven gives enough power for traveling on even more grade slope of the job site.

  • Track counter rotation on the spot give more maneuverable operation of the tractor.

  • High ground clearance and low ground pressure allows working in any type of tough conditions.

    • ENGINE

  • Equipped the Cummins 6BTA5.9-C seris disesl engine.

  • High quality and easy maintainance, ensuring sustained power output for the welding procedure demand.

  • Enlarge cooling system and cold area starter device can be install while using in the tropical or frozen area.

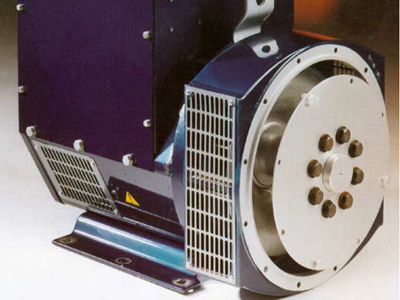

    • GENERATOR

  • Through a direct-drive mode from the engine,Stanford generator is employed for the pay welder’s generating system.

  • The generator is bushless maintainance free type ensuring a longagevity of optimal performance.

    • HYDRUALIC SYSTEM

  • American Sauer hydraulic system is installed in the equipment for power both the travelling of tractor and crane operation.

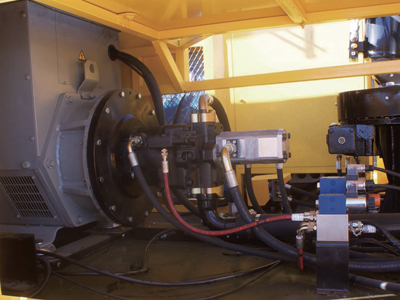

  • Pump is directly connected to the drive train after the engine and generator.

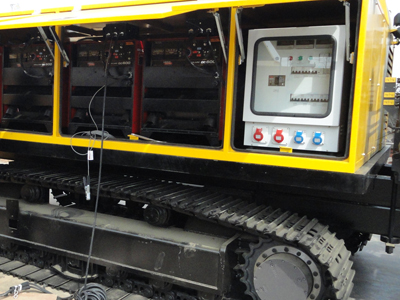

    • ELECTRICAL CABINET

  • Power source form the generating system is controlled and distributed at the electrical cabinet.

  • The cabinet is water proof and equipped with a big area of shatterproof glass for clear and easy reading of the volt, ampere and frequency meters.

  • Emergency breaker is standard equip of this unit for the people and equipments’s safety.

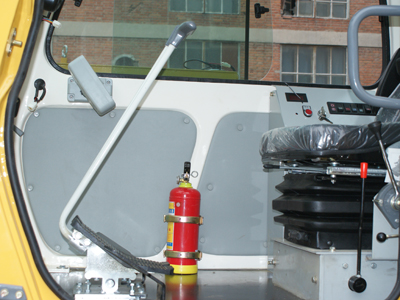

    • ENCLOSED CABIN

  • Big room space, max glass area gives the operator comfortable operating condition.

  • Lever controls of both the traveling and crane in the cabin.

  • Safety switch equipment at the side of the driver’s seat to prevents tractor from running during the generating work.

    • CRANE

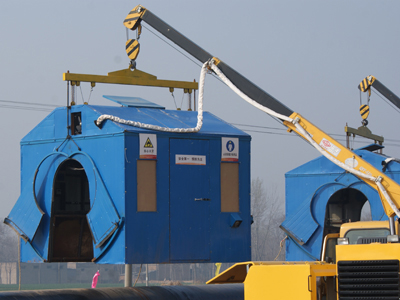

  • The HIAB seris hydraulic crane is mounted onto the tractor for lifting the welding tent and other welding accessories.

  • Crane operation can be arranged both inside and outside the cabin.

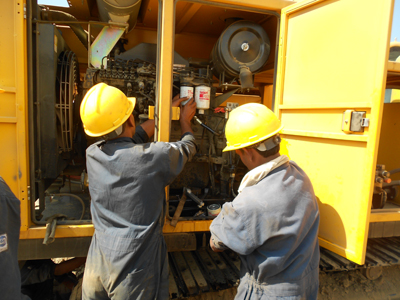

    • MAINTAINANCE

  • The cover of the payerlder is designed for easy maintenance.

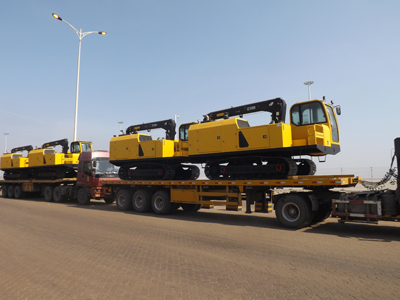

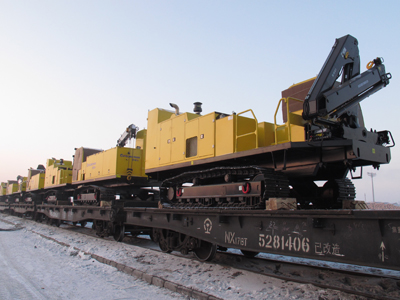

    • TRANSPORT

  • We have prepared a thoughtful packing solution for land transportation and sea transportation.

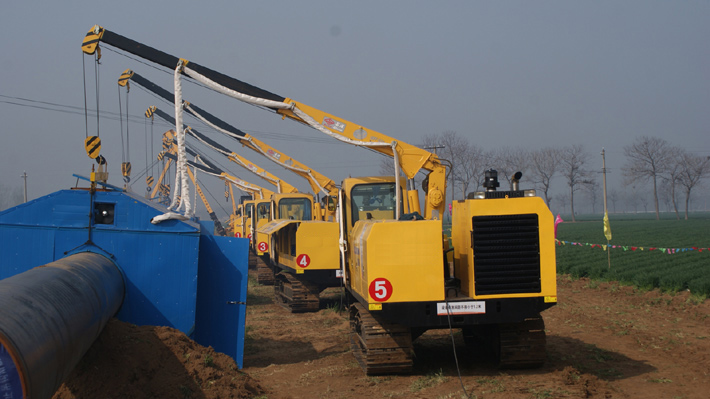

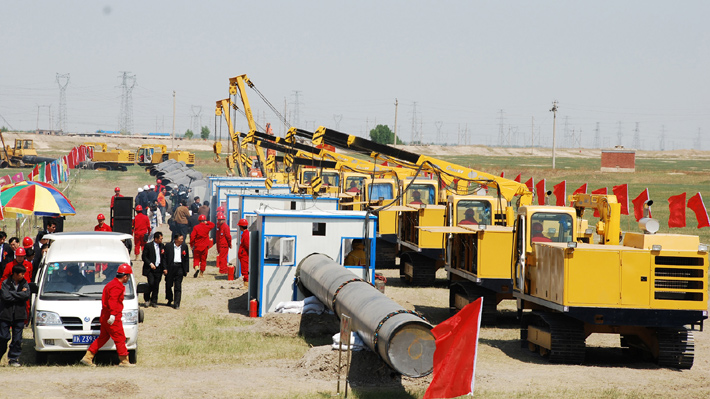

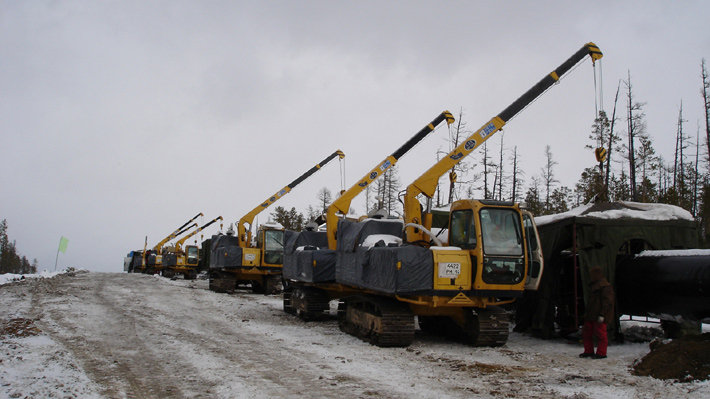

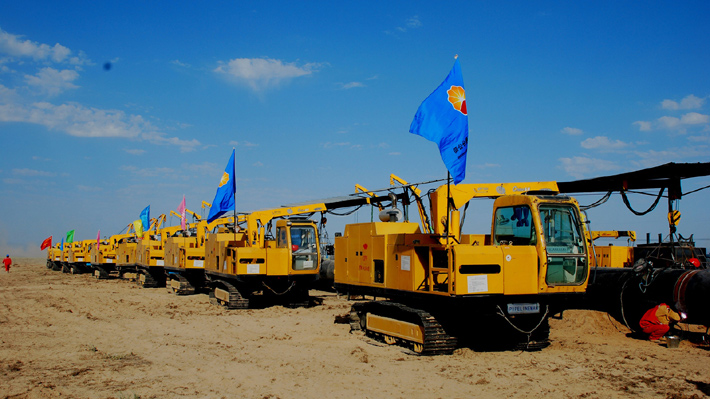

    • Pay welder is special multifunctional equipment in oil&gas pipeline construction. Traveling, lifting, carrying, power supply functions makes it more useful in welding process.
