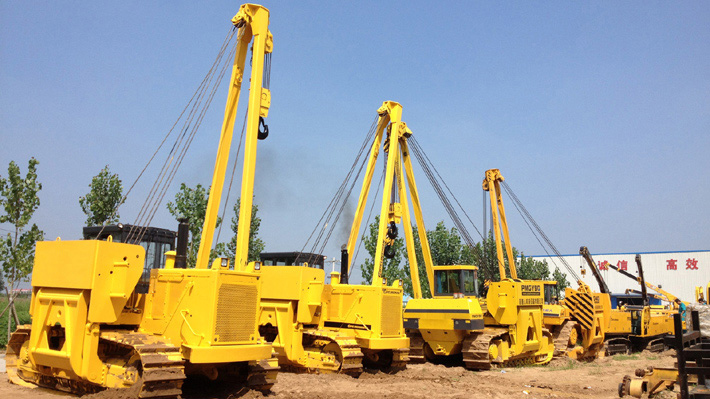

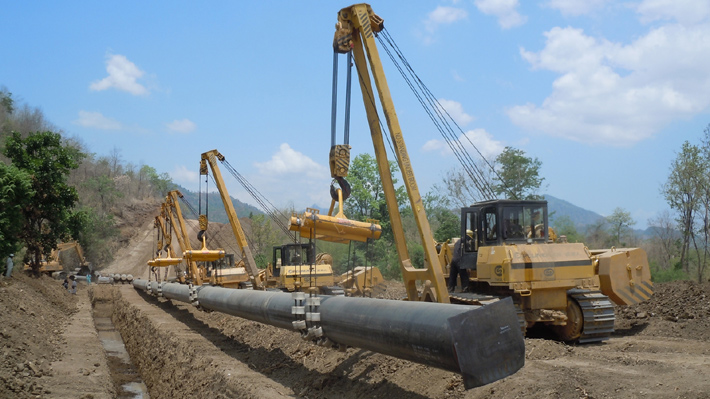

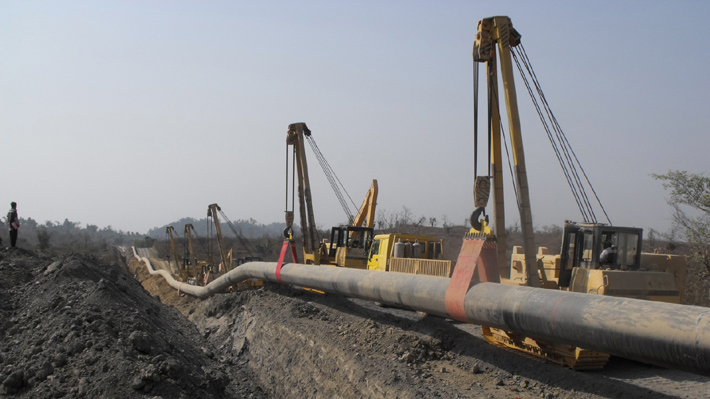

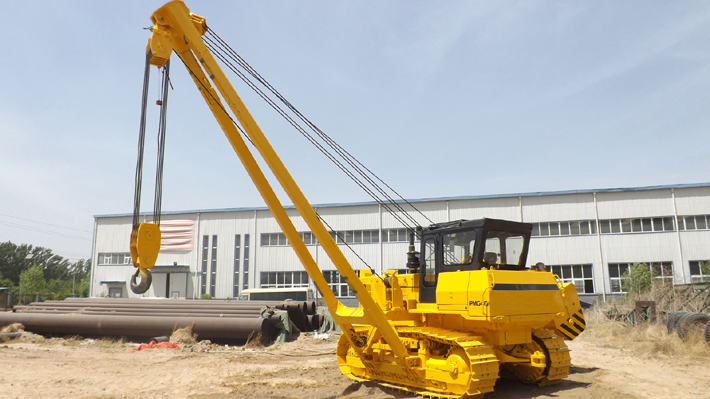

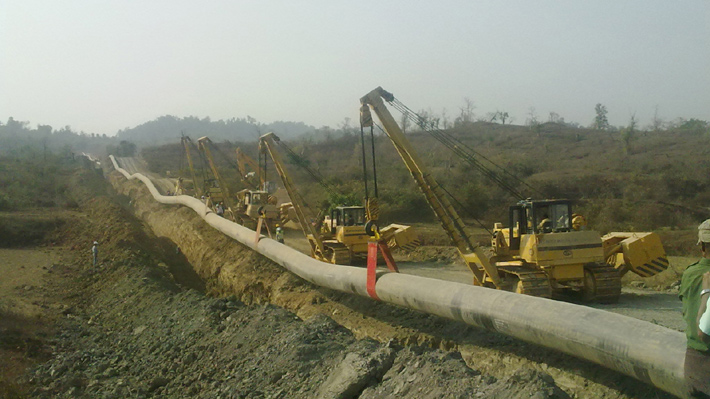

PMG90
Engine model : NTA855-C360
Max lifting capacity : 90T
Engine model : NTA855-C360
Max lifting capacity : 90T
| ITEMS | PARAMETERS |
|---|---|
| Model | PMG90 |
| Max lifting capacity | 90t |
| Rated lifting capacity | 76.5t |
| Operating weight (approximate) | 55t |
| Overall dimensions (with boom) | 5630 × 5150 × 9480mm |
| Overall dimensions (boom removed) | 5630 × 3436 × 3540mm |
| Ground pressure | 86.6kPa |
| Ground clearance | 550mm |
| Maximum grade ability | 25° |
| Environmental Condition | Operating temperature: -40℃ ～ +60℃, 3600m below |
| Engine | |
| Model | Cummins NTA855-C360 |
| Rated power | 257kW |
| Rated speed | 2000rpm |
| Number of cylinders | 6 |
| Travel System | |
| Operating mode | Handle lever |
| Travel speed (Forward) | 3.6 / 6.6 / 11.5 km/h |
| Travel speed (Reverse) | 4.4 / 7.8 / 13.5 km/h |
| Length of track on ground | 3620mm |
| Track gauge | 2490mm |
| Width of shoes | 860mm |
| Number of track rollers (each side) | 9 |
| Pipelaying Equipment | |
| Boom luffing mode | Wire rope |
| Operating mode | Hydraulic joystick |
| Length of boom | 9600mm |
| Max lifting height | 8110mm |
| Boom luffing angle | 0 ～ 86° |
| Hook speed | 0 ～ 7.0m/min |
| Hook line | 8 |
| Luffing time | 40s |
| Boom line | 5 |
| Counterweight | 2346kg × 4 (Removable) |
| Operation | Hydraulic cylinder activated |
| Standards | |
| Applied standard | ISO 8813-92, Q/GDR 101008-2014 |
ENGINE
The Cummins, NT855-C360 direct injection and turbocharged
engine gives sustained power and high torque rise that is
required for the more tough jobs.
UNDERCARRIAGE
With high stability and low ground pressure, the rigid and boxed frame undercarriage meet the requirement of all
type of terrains, giving a dependable and longevity of service in all harsh conditions.
Squared A-frame section boom built for adequate support for the most demanding lifting stress, quick release hinge
pin for easy boom detachment and maintenance.
Free Fall System
When the button is engaged,the load free-falls and then immediately
stops when the button is released.
Automatic Boom Kick-Out
This system will ensure you will never bend another boom.
Anti Two Block
Sets a minimum distance between the top block and the hook
block,preventing collisions between them.
Anti Tipping System
Prevents tipping by calculating the maximum load that can be lifted.
ELECTRONIC OVER HYDRAULIC
Freefall system, boom kick-out system and anti-two block plus,
Anti-tipping system
Prevents tipping by calculating the maximum load that can be lifted.
CABIN

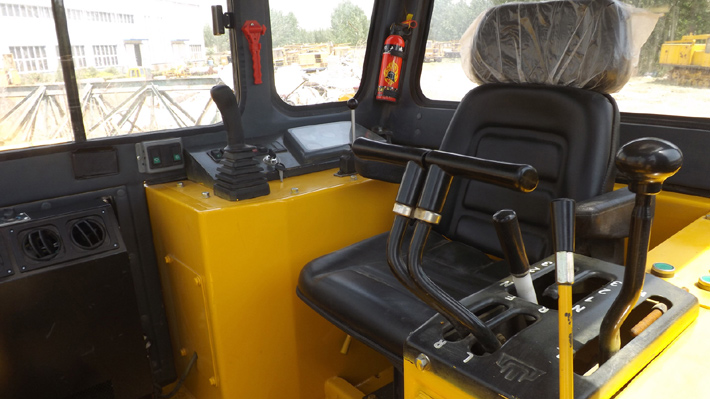

Good visibility to work area and top of the boom with a sky
window on the roof, ROPS can be installed as the optional
equipment.
CONTROL
Hydraulic joystick operation provides simultaneous, precise
control of the load and boom functions with one hand.single lever
control for the counter weight in and out.
COUNTER WEIGHT
Hydraulically retracted and extended, four bar linkage structure counterweight adds more stability and balance
during the lifting work, low compact design provides excellent right side visibility.
WINCHES
Two independently controlled hydraulic winches drive the boom
and hook systems, brake are applied automatically when control
lever returned to neutral position.
STANDARD EQUIPMENT
|
Undercarriage Suspended track frame,closed, non-oscillating type • Track chain,sealed with split master link,41 links • Track frame, rigid • Pivot shaft, separate • Sprocket segments, bolted • Track roller 9,each side • Carrier roller 2,each side • Idler 01, each side • Hydraulic track adjuster • Track and rollers lifespan lubricated • 860 mm serviceable plate • Track guide centre part • Track guiding guard,front •
Power train Cummins NTA855-C360 engine • Antifreeze, -37 0C (-34 F) • Fan, suction • Water separator fuel system • Air cleaner, dry type w/exhaust • Aspi rated pr imary and safet y elements and service indicator • Fuel priming pump • Fuel tank and fillter • Torque converter, single stage • Final drives, planetary type • Muffler • Radiator • Transmission, power shift • 3 speed forward, 3 reverse.• Parking brake, automatic •
Hydraulic system Variable flow pump, load sensing • Pipe and valves • Hydraulic control counterweight • Hydraulic control winch and boom
Free fall device •
|
Control valve for 1 circuit • Hydraulic servo control • Hydraulic tank&oil level control • Oil filter with strainer in hydraulic tank •
Operator's cab Cabin, isolation mounted, full vision with lockable door • Operator's seat, adjustable • Seat belt • Foot operator, inching break paddle • Dual steering control • Monitoring system/service indicator • Key, start • Fire extinguisher in cabin • Coat hook • Rear mirror, inside • Safety glass, tinted • Windshield wipers front, rear • Dome window • Control, single joystick • Safety lever • Emergency stop •
Electrical Starter motor • Batteries, maintenance free • On-board system 24 V • Alternator 50 A • Back-up alarm, horn • Beacon • Working lights, front 2 ,rear 2 , side 2 ,boom 1 ,winch, 1 • Dome light • Instrument warning lights • Battery charging • Hourmeter • Speed range •
Engine oil pressure •
|
Water temperature • Fuel level • Parking brake • Hydraulic oil temperature • Pump replenishing pressure • Oil return fillter • Air filter • Main warning light •
Pipe laying equipment Boom welded type box-section structure• Boom kickout,uppermost position • Boom load limit sensor • Counterweight,adjustable,hydraulically controlled,4-block and 2-counterweight frames • Hydraulic draw works with independent driver motors for boom and hook winches • Brakes ,wet multiple disc,closed type,spring applied and hydraulically released • Blocks and hook with latch • Ropes •
Basic machine Bumper front • Towing lug front • Towing hitch rear • Battery compartment, lockable • Refuelling pump, electric • Belly pans, heavy-duty,hinged • Radiator, wide-meshed • Engine cover, perforated • Engine doors, perforated • Engine doors, hinged, lockable • Lugs for crane lifting • Toolkit • Exhaust pipe,insulated •
|
|
Air conditioner Rear winch for pulling Lengthened boom Arktic package ROPS or FOPS Enlarged radiator |
